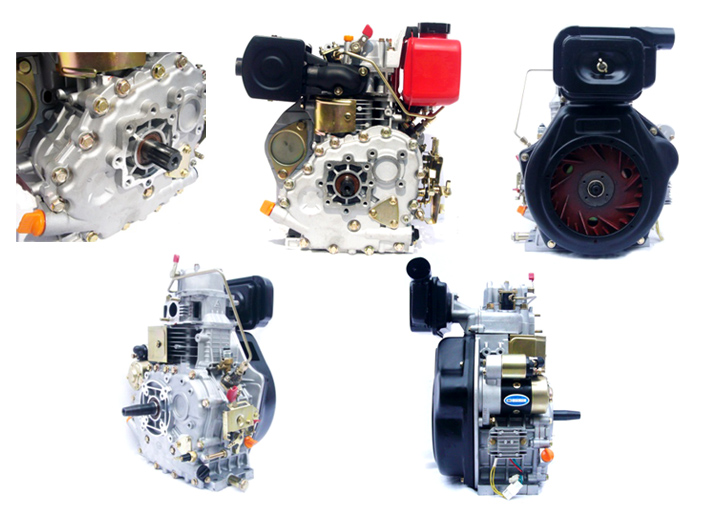

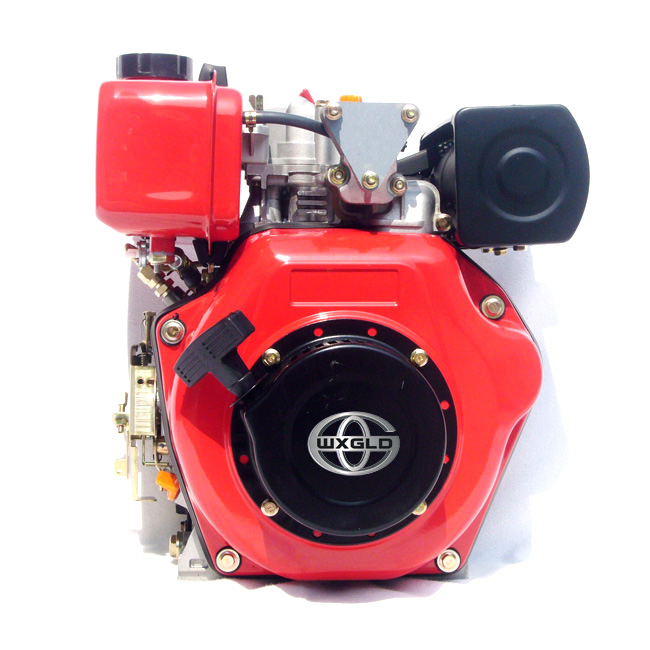

  | Single cylinder Diesel Engine >> Diesel Engine GLD170F(E)



Model GLD170F(E)
Type Single-cylinder、Vertical、4-Stroke、  air-cooled、Diesel engine
Bore * Stroke                      (mm) 70*55
Displacement                      (ml) 211
Compression Ratio 19:1
Rated Speed                 (rpm)(50/60HZ) 3000 3600
Rated Output                      (kw) 2.5 2.8
Max.output                         (kw) 2.8 3.1
Fuel Consumption                (G/kw.h) <295
Starting System Manual or Electric Start
Fuel Tank Capacity               (L) 2.5
Oil Capacity                         (L) 0.75
Fuel Type               0#(Summer)、-10#(Winter) diesel
Oil Type 10W/30SAE
Continuous Running Time     (h) 3.0 2.5
Dimension        L x W x H     (mm) 415  x  385  x  470
N.W/G.W.                           (kg) 25/30

Air-cooled Diesel engines use good quality spare parts to ensure fast starting, smooth operation and low shock, low noise and fuel consumption, which have been exported to Philippine, Thailand, Europe, America, South Africa and so on. sincerely welcome you to establish long-term cooperation with us, to create a bright tomorrow!
Diesel engine, engine,
air-cooled, vertical, single cylinder, 4-stroke, Diesel Engine 3000/3600rpm 4HP, 7HP, 9HP,10HP, 12HP with CE certificates
* Description
EPA Exhaust Emission Compliant
The miniaturized fuel injection system
Low fuel consumption
Lightweight and compact design
Easy and fast starting
Stand up the hard work
Recoil or electric starting
Multiple PTO Shaft Options
Electric and / or Recoil Start
