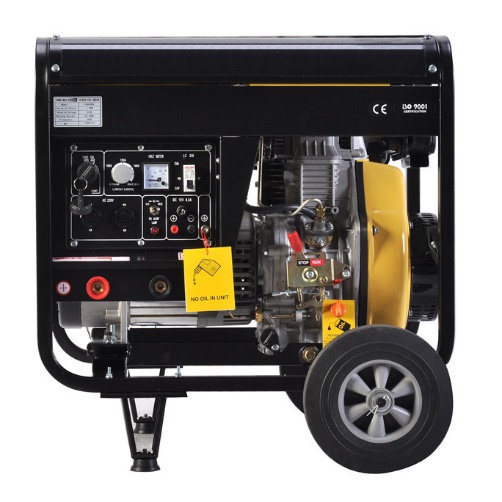

Light weight, small size, easy to move, for pipe
tunnel construction, Field operations, municipal repair and other special
circumstances have strong applicability.Factory pipeline operations, high-quality parts,
independent research and development motor, Professional and technical assembly,
to ensuring product high quality.
1. Powerful Energy, Fuel Saving, Easy Operation
& Maintenance.
2. Pure copper motor longer its using life.
3. Variable configurations are available
according to clients' requirement.
4. Universal accessories, Reasonable price,
Convenient replacement.
5. High-tech molding powder shell with high
temperature & corrosion resistance.
6.
Original Factory Sale with more stable production, quality guaranteed and more
competitive price without trade company.
|
Model |
GLD6500MW |
|
GENERATOR
|
Frequency (HZ) |
50HZ |
60HZ |
|
Max.output (KW) |
5.0 |
5.5 |
|
Rated output(KW) |
4.6 |
5.0 |
|
Rated AC Voltage(V) |
230 |
240 |
|
Power Factor
( cosφ) |
1 |
|
DC output (V) |
12V/8.3A |
|
Phase |
Single Phase |
|
Alternator Type |
Self-excited,2-pole, Single phase alternator
|
|
Starting System |
Recoil and Electric |
|
Noise Level (Dba/7m) |
72-80 Db |
|
Fuel Tank Capacity (L) |
15 |
|
Continuous Running Time (hr) |
7.7 |
7.1 |
|
WELDER
|
Welding no-load voltage(v) |
55-65 |
|
Working Voltage (v) |
26-30 |
|
Rated Current (A) |
160 |
|
Range of current |
0-180 |
|
Welding efficiency |
60% |
|
ENGINE
|
Engine Model |
GLD186FAE |
|
Engine Type |
Single-cylinder, vertical,4-stroke
air-cooled diesel engine, Direct Injection
|
|
Bore〜Stroke
(mm) |
86〜72 |
|
Displacement (cc) |
418 |
|
Fuel |
0#(summer) or
-10#(winter) light diesel oil,-35# (cold)
|
|
Rated output power [kw/rpm] |
5.9/3000 |
6.5/3600 |
|
Lubrication Oil Volume (L) |
1.65 |
|
Compression ratio |
19:1 |
|
STANDARD FEATURES
|
Voltmeter |
YES |
|
AC Output Socket |
2 |
|
AC Circuit Breaker |
YES |
|
Oil warning Light |
YES |
|
Oil Alert |
YES |
|
Big wheel |
2 |
|
OPTIONAL FEATURES
|
Dc circuit breaker |
OPTIONAL |
|
Running time meter |
OPTIONAL |
|
Big wheel |
OPTIONAL |
|
Three phase voltage |
OPTIONAL |
|
Current meter |
OPTIONAL |
|
ATS |
OPTIONAL |
|
Remote control |
OPTIONAL |
|
DIMENSIONS
|
Dimension(L*W*H)(mm) |
750*500*640 |
|
Net Weight(kg) |
75 |
|
