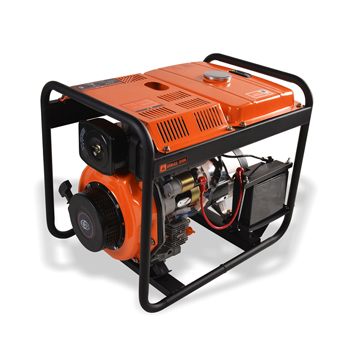

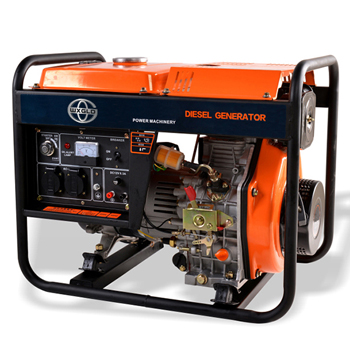

Open frame model portable model with 4 wheels ensure
easily moving; Also can make silent type GLD2500ES, noise can cut down.
Product Description
1.Lower consumption , lower noise, lower pollution, Higher efficiency and
environmental friendly
2.Strict testing system, stable voltage and frequency
3.Secured ground terminal
4.Stronger automatic startup system, starting with in only 1~5s
5.Smart in size, delicate in style, longer service life
6.Very diversified and customized choices
|
Model
|
GLD2500R(E)/M
|
|
GENERATOR
|
Frequency (HZ)
|
50HZ
|
60HZ
|
|
Max. output (KW)
|
2.0
|
2.2
|
|
Rated output(KW)
|
1.7
|
2.0
|
|
Rated AC Voltage(V)
|
120,220,230,120/240,220/380
|
|
Power Factor ( cosφ)
|
1
|
|
DC output (V)
|
12V/8.3A
|
|
Phase
|
Single Phase or Three phase
|
|
Alternator Type
|
Self-excited,2-pole, Single phase alternator
|
|
Starting System
|
Recoil or Electric / Mix
|
|
Noise Level (Dba/7m)
|
72-75 Db
|
|
Fuel Tank Capacity (L)
|
15
|
|
Continuous Running Time (hr)
|
17
|
14
|
|
ENGINE
|
Engine Model
|
GLD170F
|
|
Engine Type
|
Single-cylinder, vertical,4-stroke air-cooled diesel engine, Direct
Injection
|
|
Bore 〜 Stroke (mm)
|
70〜55
|
|
Displacement (cc)
|
211
|
|
Fuel
|
0#(summer) or -10#(winter) light diesel oil,-35# (cold)
|
|
Rated output power [kw/rpm]
|
2.5/3000, 2.8/3600
|
|
Lubrication Oil Volume (L)
|
0.75
|
|
Compression ratio
|
20:1
|
|
STANDARD FEATURES
|
Voltmeter
|
YES
|
|
AC Output Socket
|
2
|
|
AC Circuit Breaker
|
YES
|
|
Oil warning Light
|
YES
|
|
Oil Alert
|
YES
|
|
Wheel
|
NO
|
|
OPTIONAL FEATURES
|
Dc circuit breaker
|
OPTIONAL
|
|
Running time meter
|
OPTIONAL
|
|
Big wheel
|
OPTIONAL
|
|
Three phase voltage
|
OPTIONAL
|
|
Current meter
|
OPTIONAL
|
|
ATS
|
OPTIONAL
|
|
Remote control
|
OPTIONAL
|
|
DIMENSIONS
|
Dimension (L*W*H)(mm)
|
675*470*550
|
|
Net Weight(kg)
|
55
|
|
