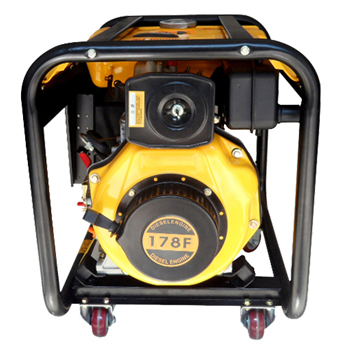

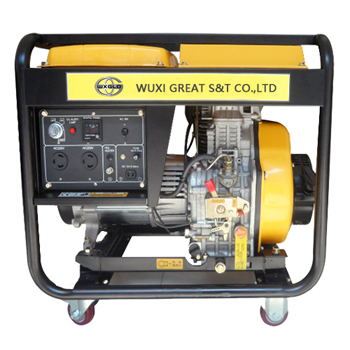

  | Air cooled Diesel Generator >> Open diesel generator >> Open type GLD3500




Open frame model portable model with 4 wheels ensure easily moving; Also can make silent type GLD3500ES, noise can cut down.

 Product Description
 1.Lower consumption , lower noise, lower pollution, Higher efficiency and environmental friendly
 2.Strict testing system, stable voltage and frequency
 3.Secured ground terminal
 4.Stronger automatic startup system, starting with in only 1~5s
 5.Smart in size, delicate in style, longer service life
 6.Very diversified and customized choices

Model

GLD3500R(E)/M

GENERATOR

Frequency (HZ)

50HZ

60HZ

Max.output (KW)

3.0

3.3

Rated output(KW)

2.8

3.0

Rated AC Voltage(V)

120,220,230,120/240,220/380

Power Factor ( cosφ)

1

DC output (V)

12V/8.3A

Phase

Single Phase or Three phase

Alternator Type

Self-excited,2-pole, Single phase alternator

Starting System

Recoil or Electric / MIX

Noise Level (Dba/7m)

72-78 Db

Fuel Tank Capacity (L)

15

Continuous Running Time (hr)

9.7

9

ENGINE

Engine Model

GLD178F

Engine Type

Single-cylinder, vertical,4-stroke air-cooled diesel engine, Direct Injection

Bore〜Stroke (mm)

78〜62

Displacement (cc)

296

Fuel

0#(summer) or -10#(winter) light diesel oil,-35# (cold)

Rated output power [kw/rpm]

3.7/3000

4.0/3600

Lubrication Oil Volume (L)

1.1

Compression ratio

20:1

STANDARD FEATURES

Voltmeter

YES

AC Output Socket

2

AC Circuit Breaker

YES

Oil warning Light

YES

Oil Alert

YES

Wheel

4

OPTIONAL FEATURES

Dc circuit breaker

OPTIONAL

Running time meter

OPTIONAL

Big wheel

OPTIONAL

Three phase voltage

OPTIONAL

Current meter

OPTIONAL

ATS

OPTIONAL

Remote control

OPTIONAL

DIMENSIONS

Dimension(L*W*H)(mm)

675*470*550

Net Weight(kg)

65
