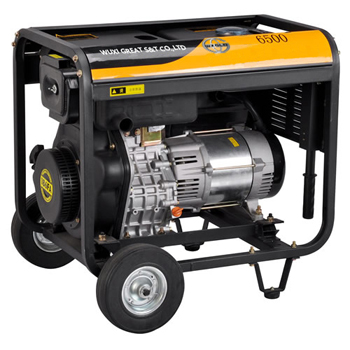

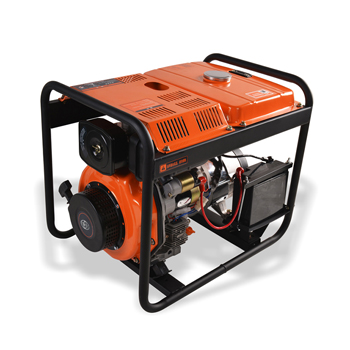

Open frame model portable model with 4 wheels ensure easily moving; Also can
make silent type GLD6500ES, noise can cut down.
Product Description
1.Lower consumption , lower noise, lower pollution, Higher efficiency and
environmental friendly
2.Strict testing system, stable voltage and frequency
3.Secured ground terminal
4.Stronger automatic startup system, starting with in only 1~5s
5.Smart in size, delicate in style, longer service life
6.Very diversified and customized choices
Model
|
GLD6500R(E)/M
|
GENERATOR
|
Frequency (HZ)
|
50HZ
|
60HZ
|
Max.output (KW)
|
5.0
|
5.5
|
Rated
output(KW)
|
4.6
|
5.0
|
Rated
AC Voltage(V)
|
120,220,230,120/240,220/380
|
Power
Factor ( cosφ)
|
1
|
DC
output (V)
|
12V/8.3A
|
Phase
|
Single
Phase or Three phase
|
Alternator Type
|
Self-excited,2-pole, Single phase alternator
|
Starting System
|
Recoil
or Electric /Mix
|
Noise
Level (Dba/7m)
|
72-78
Db
|
Fuel
Tank Capacity (L)
|
15
|
Continuous Running Time (hr)
|
7.7
|
7.1
|
ENGINE
|
Engine
Model
|
GLD186FA
|
Engine
Type
|
Single-cylinder, vertical,4-stroke air-cooled diesel engine, Direct
Injection
|
Bore〜Stroke (mm)
|
86〜72
|
Displacement (cc)
|
418
|
Fuel
|
0#(summer) or -10#(winter) light diesel oil,-35# (cold)
|
Rated
output power [kw/rpm]
|
5.9/3000
|
6.5/3600
|
Lubrication Oil Volume (L)
|
1.65
|
Compression ratio
|
19:1
|
STANDARD FEATURES
|
Voltmeter
|
YES
|
AC
Output Socket
|
2
|
AC
Circuit Breaker
|
YES
|
Oil
warning Light
|
YES
|
Oil
Alert
|
YES
|
Wheel
|
4
|
OPTIONAL FEATURES
|
Dc
circuit breaker
|
OPTIONAL
|
Running time meter
|
OPTIONAL
|
Big
wheel
|
OPTIONAL
|
Three
phase voltage
|
OPTIONAL
|
Current
meter
|
OPTIONAL
|
ATS
|
OPTIONAL
|
Remote
control
|
OPTIONAL
|
DIMENSIONS
|
Dimension(L*W*H)(mm)
|
750*500*640
|
Net
Weight(kg)
|
95
|
|
