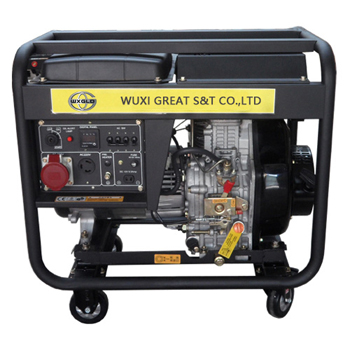

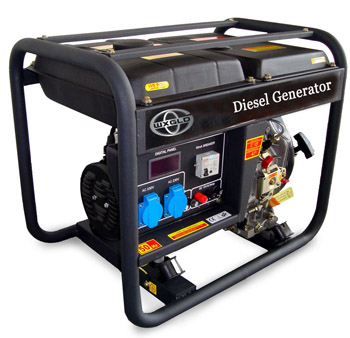

  | Air cooled Diesel Generator >> Open diesel generator >> Open type GLD8500




Open frame model portable model with 4 wheels ensure easily moving; Also can make silent type GLD8500ES, noise can cut down.
 Product Description
 1. Lower consumption , lower noise, lower pollution, Higher efficiency and environmental friendly
 2. Strict testing system, stable voltage and frequency
 3. Secured ground terminal
 4. Stronger automatic startup system, starting with in only 1~5s
 5. Smart in size, delicate in style, longer service life
 6. Very diversified and customized choices

Model

GLD8500R(E)

GENERATOR

Frequency (HZ)

50HZ

60HZ

Max.output (KW)

6.5

7.0

Rated output(KW)

6.0

6.5

Rated AC Voltage(V)

120,220,230,120/240,220/380

Power Factor ( cosφ)

1

DC output (V)

12V/8.3A

Phase

Single Phase or Three phase

Alternator Type

Self-excited,2-pole, Single phase alternator

Starting System

Recoil or Electric

Noise Level (Dba/7m)

80-85Db

Fuel Tank Capacity (L)

15

Continuous Running Time (hr)

5.9

5.5

ENGINE

Engine Model

GLD192FE

Engine Type

Single-cylinder, vertical,4-stroke air-cooled diesel engine, Direct Injection

Bore〜Stroke (mm)

92〜75

Displacement (cc)

498

Fuel

0#(summer) or -10#(winter) light diesel oil,-35# (cold)

Rated output power [kw/rpm]

8.0/3000

8.5/3600

Lubrication Oil Volume (L)

1.65

Compression ratio

19:1

STANDARD FEATURES

Voltmeter

YES

AC Output Socket

2

AC Circuit Breaker

YES

Oil warning Light

YES

Oil Alert

YES

Wheel

4

OPTIONAL FEATURES

Dc circuit breaker

OPTIONAL

Running time meter

OPTIONAL

Big wheel

OPTIONAL

Three phase voltage

OPTIONAL

Current meter

OPTIONAL

ATS

OPTIONAL

Remote control

OPTIONAL

DIMENSIONS

Dimension(L*W*H)(mm)

950*565*770

Net Weight(kg)

170
