Product advantages
of Water Pump:
*Super
light diesel engine as power.
*Aluminum
alloy shell-body.
*High
quality mechanical seal device.
*Self-priming structure
Super
applicability
This
powerful and compact water pump is the ideal solution for irrigation and
household.
Durable
wear-resistant materials
The
lightweight and shock resistance materials ensure long lifespan and low failure
rate.
Heavy duty
full frame protects the pump
Make the
pump portable and provide ample power for the toughest conditions.
The
powerful and compact water pump has high impact resistance and Suitable for
outdoor work.
|

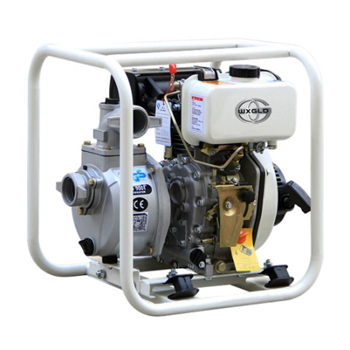

Model GLD40P
|
|
Water pump水泵
|
Suction，discharge
port diameter [mm（in）]
|
100（4”）
|
|
Cont. head（m）
|
31
|
|
Self-priming time（s/4m）
|
180
|
|
Cont. capacity（m3/hr）
|
96
|
|
Max suction head（m）
|
8
|
|
Engine 发动机
|
Engine model
|
GLD186FA
|
|
Speed（rpm）
|
3600
|
|
Type
|
Single-cylinder，vertical，4-stroke
air-cooled diesel engine
|
|
Displacement（cc）
|
418
|
|
Bore * stroke (mm)
|
86*72
|
|
Starting system
|
Recoil or Electric
|
|
Fuel tank capacity（L）
|
5.5
|
|
Standard features 标准配置
|
Oil alert
|
yes
|
|
Connecter of infall，Connecter
of outfall
|
yes
|
|
Filter
|
yes
|
|
Seal ring
|
yes
|
|
Hoop
|
yes
|
|
Dimensions尺寸
|
Dimension（L
* W * H）（mm）
|
645*475*605
|
|
Net weight （kg）
|
69
|
|
20FT
|
99
|
|
